รางกระดูกงูเหล็ก (Cable chain steel)
วัสดุ : อลูมิเนียม / เหล็ก / สแตนเลส
สี : เงิน
อุณหภูมิที่ใช้งาน : 250°C - 600°C
ลักษณะการใช้งาน
รางกระดูกงูเหล็ก (Cable chain steel) ถูกออกแบบมาเพื่อปกป้องสายเคเบิลและท่อร้อยสายและสายไฮโดลิคไม่ให้เกิดการหักงอหรือแตกง่าย แบ่งและแยกและป้องกันไม่ให้สายพันกัน ลักษณะการใช้งานเคลื่อนไหวบนเครื่องมือเครื่อง, หุ่นยนต์, เครื่องจักรงาน และความหลากหลายของเครื่องจักรอุตสาหกรรม ใช้งานรวมถึงได้รับการสนับสนุนเลื่อนแขวนแนวตั้งและยืนอยู่ด้านข้างติดตรงข้ามเคียงข้างการเคลื่อนไหวแบบหมุนและรวม รางกระดูกงูเหล็กได้รับการออกแบบอย่างสร้างสรรค์มีหลากหลายรูปแบบ สินค้ามีคุณภาพสูง

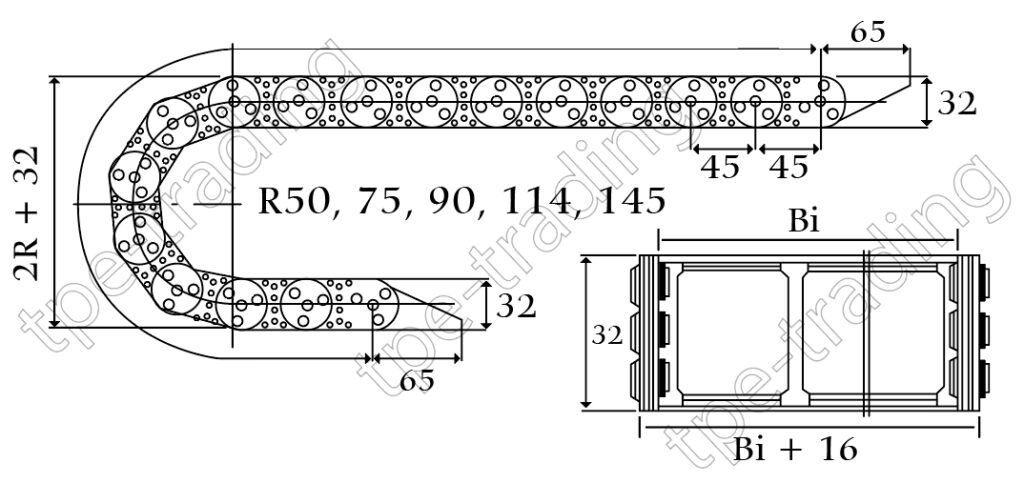

รางกระดูกงู รุ่น TL45
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL45 | 16 x 32 | 75 x 100 | 50, 75,90 ,115 ,145 |
TL45 | 16 x 32 | Customised | 50, 75,90 ,115 ,145 |
รางกระดูกงูเหล็ก รุ่น TL65
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL65 | 30 x 44 | 75 x 100 | 75, 90, 115, 125, 145, 185 |
TL65 | 30 x 44 | Customised | 75, 90, 115, 125, 145, 185 |
รางกระดูกงูเหล็ก รุ่น TL80
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL80 | 32 x 56 | 75 x 100 | 100, 115, 125, 145, 185, 200, 250, 300 |
TL80 | 32 x 56 | Customised | 100, 115, 125, 145, 185, 200, 250, 300 |

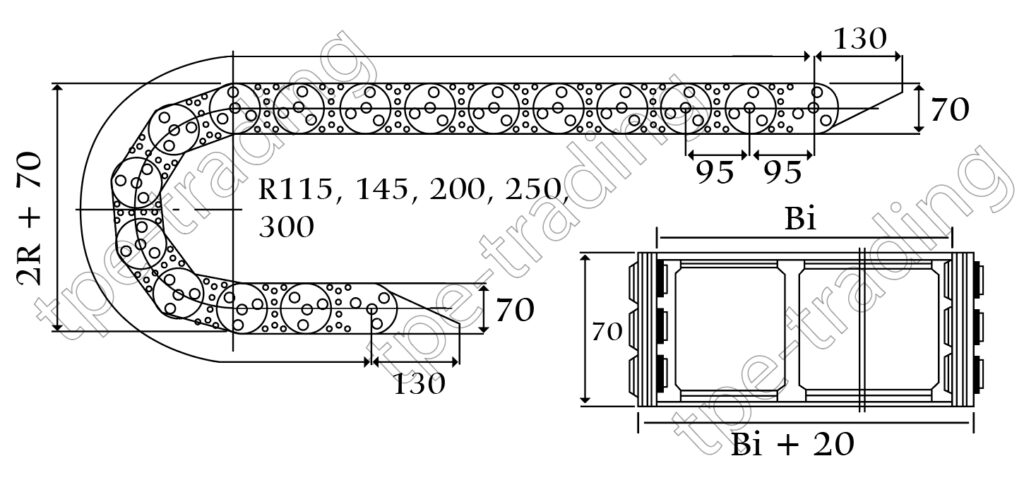

รางกระดูกงูเหล็ก รุ่น TL95
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL95 | 48 x 70 | 75 x 100 | 115, 145, 200, 300 |
TL95 | 48 x 70 | Customised | 115, 145, 200, 300 |
รางกระดูกงูเหล็ก รุ่น TL115
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL115 | 58 x 86 | 75 x 100 | 145, 200, 225, 250, 300, 350 |
TL115 | 58 x 86 | Customised | 145, 200, 225, 250, 300, 350 |
รางกระดูกงูเหล็ก รุ่น TL125
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL125 | 68 x 100 | 75 x 100 | 200, 250, 300, 350, 470, 500, 600, 700, 750 |
TL125 | 68 x 100 | Customised | 200, 250, 300, 350, 470, 500, 600, 700, 750 |
รางกระดูกงูเหล็ก รุ่น TL155
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL155 | 86 x 120 | 75 x 100 | 200, 250, 300, 350, 450, 500, 600 |
TL155 | 86 x 120 | Customised | 200, 250, 300, 350, 450, 500, 600 |
รางกระดูกงูเหล็ก รุ่น TL180
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL180 | 112 x 144 | 75 x 100 | 250, 300, 350, 450, 490, 600, 650 |
TL180 | 112 x 144 | Customised | 250, 300, 350, 450, 490, 600, 650 |

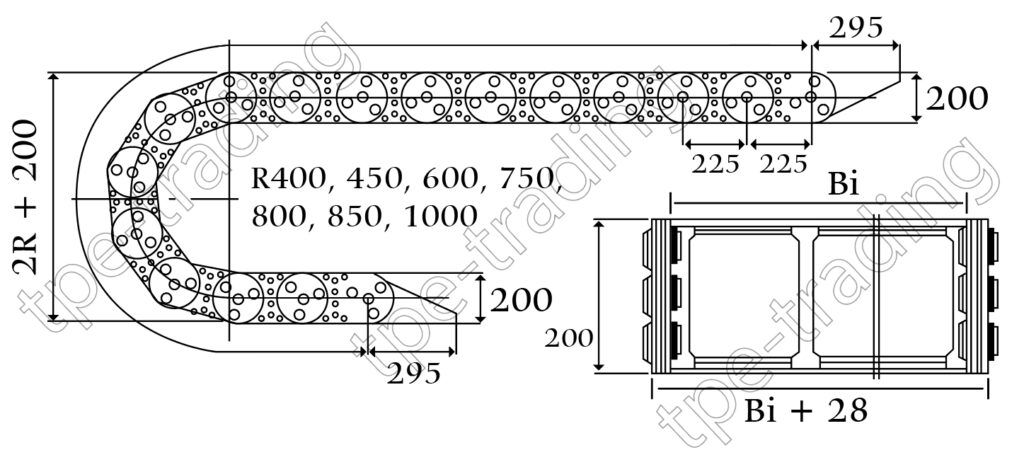

รางกระดูกงูเหล็ก รุ่น TL225
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL225 | 152 x 200 | 75 x 100 | 400, 450, 600, 750, 800, 850, 1000 |
TL225 | 152 x 200 | Customised | 400, 450, 600, 750, 800, 850, 1000 |
รางกระดูกงูเหล็ก รุ่น TL250
Product Type | Height inside x outside (mm.) | Length inside x outside (mm.) | Bending (mm.) Radius |
TL250 | 172 x 250 | Customised | 400, 450, 600, 750, 800, 850, 1000 |
รางกระดูกงูสแตนเลส DGT Type
- Material : Stainless Steel , Plastic PA66
- Type : Totally enclosed stainless steel inner lining : PA66
- Purpose : Protect the wire and cable
- Working Temperature : -40°C - 125°C
- DGT : It consists of a outer sleeve being chromium plated, stainless steel and plastic pieces and engineering plastic reinforced mylon fibre. the stainless steel bushing is polished.
Product Type | Inside mm.(Height x Length) | Outside mm. (Height x Length) | Bending Radius | Non-Support Length (m.) | Maximum Loads |
MF01 | 25 x 45 | 39 x 62 | 75 | 1.5 | 3 |
MF02 | 38 x 73 | 53 x 91 | 100 | 2 | 4 |
MF03 | 45 x 90 | 61 x 108 | 130 | 2.2 | 5 |
MF04 | 52 x 102 | 70 x 122 | 150 | 2.5 | 8 |
MF05 | 60 x 120 | 81 x 144 | 165 | 2.7 | 10 |
MF06 | 60 x 150 | 81 x 184 | 165 | 2.9 | 14 |
MF07 | 72 x 162 | 93 x 186 | 185 | 3 | 20 |
รางกระดูกงูสแตนเลส JR-2
- Material : Steel , Stainless Steel
- Working Temperature : -40°C ~ 125°C
- Structure : Totally enclosed reinforced type
- Application : Rectangle metallic protective cover hoses. The rectangle metallic hose suitable for all types of metal cutting machine tools and slicing machines. Protect working personnel, Electric circuits, Water supplying piping systems.
Product Type | Inside mm.(Height x Length) | Outside mm. (Height x Length) | Bending Radius | Axial Pulling Force (Kg) | Weight (Kg/m) |
JR01 | 22 x 32 | 27.5 x 36.7 | 60 | 35 | 1.30 |
JR02 | 25 x 50 | 31.5 x 54.4 | 90 | 40 | 1.75 |
JR03 | 35 x 60 | 40.1 x 64.4 | 100 | 50 | 2.10 |
JR04 | 38 x 73 | 43.7 x 77.8 | 110 | 60 | 2.36 |
JR05 | 40 x 80 | 45.4 x 84.7 | 120 | 70 | 2.50 |
JR06 | 52 x 102 | 57.5 x 107.8 | 140 | 75 | 2.85 |
JR07 | 60 x 120 | 67.5 x 127.7 | 180 | 80 | 3.15 |
JR08 | 60 x 130 | 65.1 x 134.4 | 180 | 80 | 3.25 |
JR09 | 72 x 162 | 78.4 x 168.2 | 210 | 80 | 4.50 |
